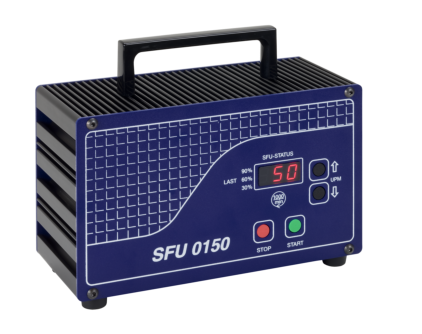

SFU 0150
Sturdy, portable and Ready-To-Go The professional solution for applications Perfectly suited for operating spindles for manual use
ü ü ü Manual Supply connection Mains switch / Fuse  Continuous  output power Output voltage Continuous phase current Peak phase current Output frequency                                                   Motor connection Control inputs                                                                ,                                                               , Display of rotat. speed Display of load condition Display of status max. dimensions                                                                           W x H x D (mm)                                                                       Weight Protection Operating conditions 3 digital 7 segment LED 200 x 167 x 108 ca. 3 kg IP20 5 - 40°C / rel. humidity of air max. 85% as bar graph on 1st 7Segment LED TECHNICAL DATA 3 Digital 7 Segment LED Start / Stop with a galvanically isolated  contact  or a BMR-footcontroller 5-pole 230V, 50Hz ON / OFF Switch in combination with a  resettable thermo protection switch as  mains fuse 1A/250V 3-pin: U, V, W 160 VA / S1-100% max. 36V 3,0A 4,5A AC: 1.000Hz  /  60.000 rpm Accessories
back
SFU 0150
Supply connection Mains switch / Fuse  Continuous  output power Output voltage Continuous phase current Peak phase current Output frequency                                                   Motor connection Control inputs                                                                ,                                                               , Display of rotat. speed Display of load condition Display of status max. dimensions                                                                           W x H x D (mm)                                                                       Weight Protection Operating conditions 3 digital 7 segment LED 200 x 167 x 108 ca. 3 kg IP20 5 - 40°C / rel. humidity of air max. 85% as bar graph on 1st 7Segment LED TECHNICAL DATA 3 Digital 7 Segment LED Start / Stop with a galvanically isolated  contact  or a BMR-footcontroller 5-pole 230V, 50Hz ON / OFF Switch in combination with a  resettable thermo protection switch as  mains fuse 1A/250V 3-pin: U, V, W 160 VA / S1-100% max. 36V 3,0A 4,5A AC: 1.000Hz  /  60.000 rpm Manual
