Walpersdorfer Str. 38 91126 Schwabach Tel.: +49 (0)9122 - 63148-0 Fax.: +49 (0)9122 - 63148-29
up to DIN A3 foilsize 12V Inputvoltage max 115V AC Outputvoltage max 520Hz Outputfrequency
up to DIN A3 foilsize 0…115V AC outputvoltage 400…1000Hz outputfrequency 6 effects:  Flash, Blink, Sine, Triangle, Sawtooth, Sawtooth inverted
up to DIN A1 foilsize 0…135V AC outputvoltage 400…1000Hz outputfrequency 6 effects:  Flash, Blink, Sine, Triangle, Sawtooth, Sawtooth inverted
up to 1,8m2 foilsize 0…140V AC outputvoltage 400…750Hz outputfrequency 8 Effekte: Flash, Blink, Sine, Triangle, Sawtooth, Sawtooth inverted, Disco, Stair
up to 1,8m2 foilsize LC-Display galvanic mains seperation foil connection: BNC-Jack at front, screw terminals at backside outputvoltage 0…165V AC outputfrequency 400…850Hz
up to DIN A1 foilsize LC-Display galvanic mains seperation Foil connection: BNC-Jack at front, screw terminals at backside
1S 0…135V AC 400…1000Hz

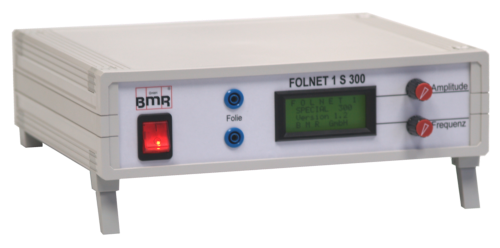

1S 300 0…350VA 400…1000Hz
1S 3000 0…350VAC 400…2590Hz
Homepage-Sicherheit
up to DIN A3
up to DIN A3
up to DIN A1
up to DIN A1
up to 1,8 m²
Electroluminescence activation
up to 1,8 m²
